IWS-0822 Compound Wire Stripper & Cutter – 22 to 8 AWG

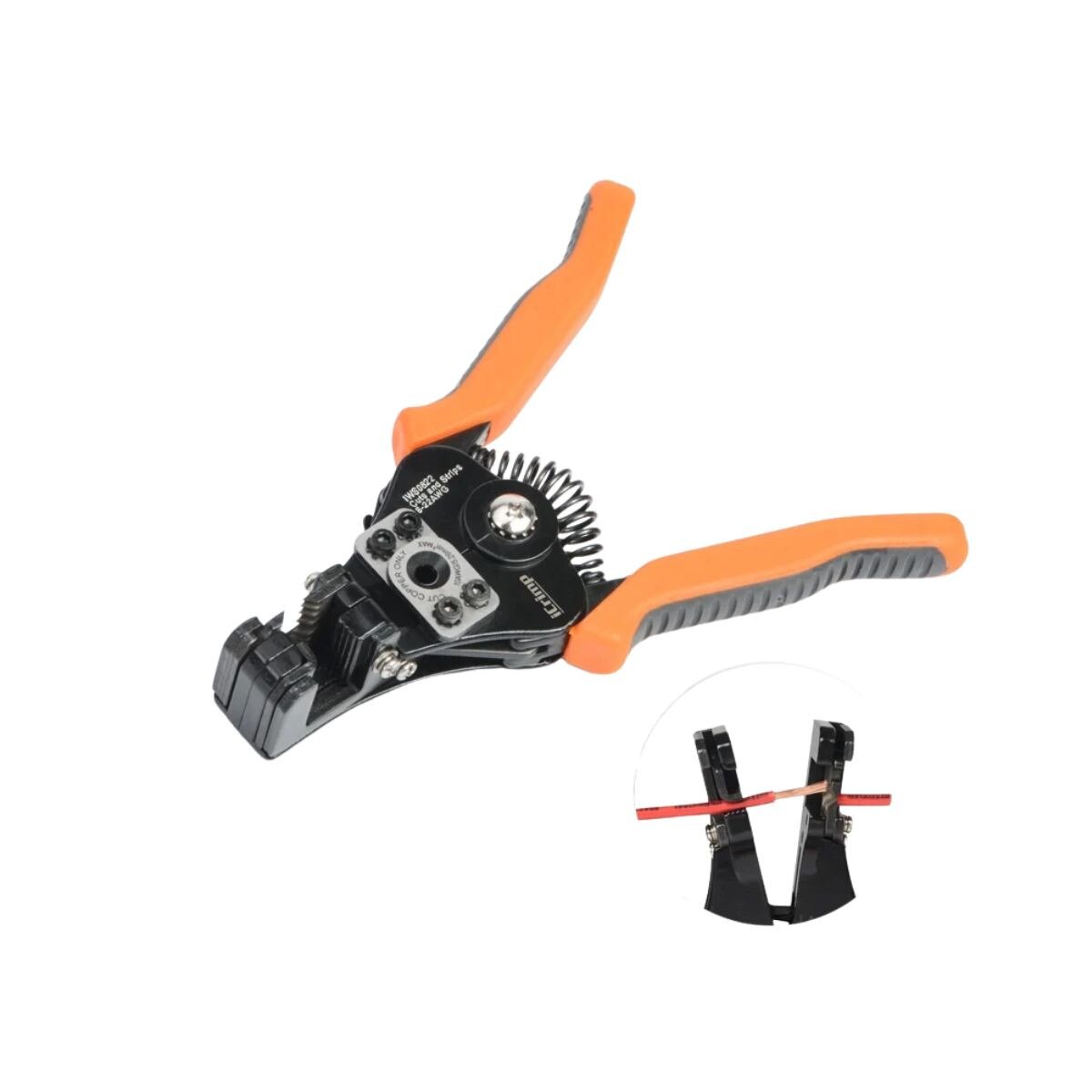

The IWS-0822 Compound Wire Stripper and Cutter Tool delivers clean, damage-free insulation stripping for solid and stranded wire from 22 to 8 AWG. Engineered with a compound action mechanism, a single squeeze grips the wire and strips up to 1 inch (24 mm) of insulation without scoring or damaging the underlying conductor.
Featuring precision-machined cutting dies, an integrated copper wire cutter rated up to 10 AWG, and a heavy-duty recoil spring that resets the tool after each cycle, the IWS-0822 streamlines high-volume panel wiring, automotive harness assembly, and field electrical installations.
$18.99
Key Specifications
- Part Number: IWS-0822
- Product Type: Wire Stripper & Cutter
- Wire Capacity: 22–8 AWG
- Stranded Wire Capacity: 22–10 AWG
- Solid Wire Capacity: 20–8 AWG
- Cutting Capacity: Max 10 AWG (Copper)
- Strip Length Capacity: Up to 1 in (24 mm) in a single squeeze
- Operation Mechanism: Compound action (Grip & Strip)
- Reset Mechanism: Integrated recoil spring
- Standards Conformance: DIN, MIL, JIS, ASTM
- Quality Certification: ISO 9001:2015 Manufacturing
- Tool Weight: 13.8 oz
- Package Dimensions: 7.1 in × 3.1 in × 0.6 in
- Application: Automotive wiring, electrical panels, industrial controls, electronics
