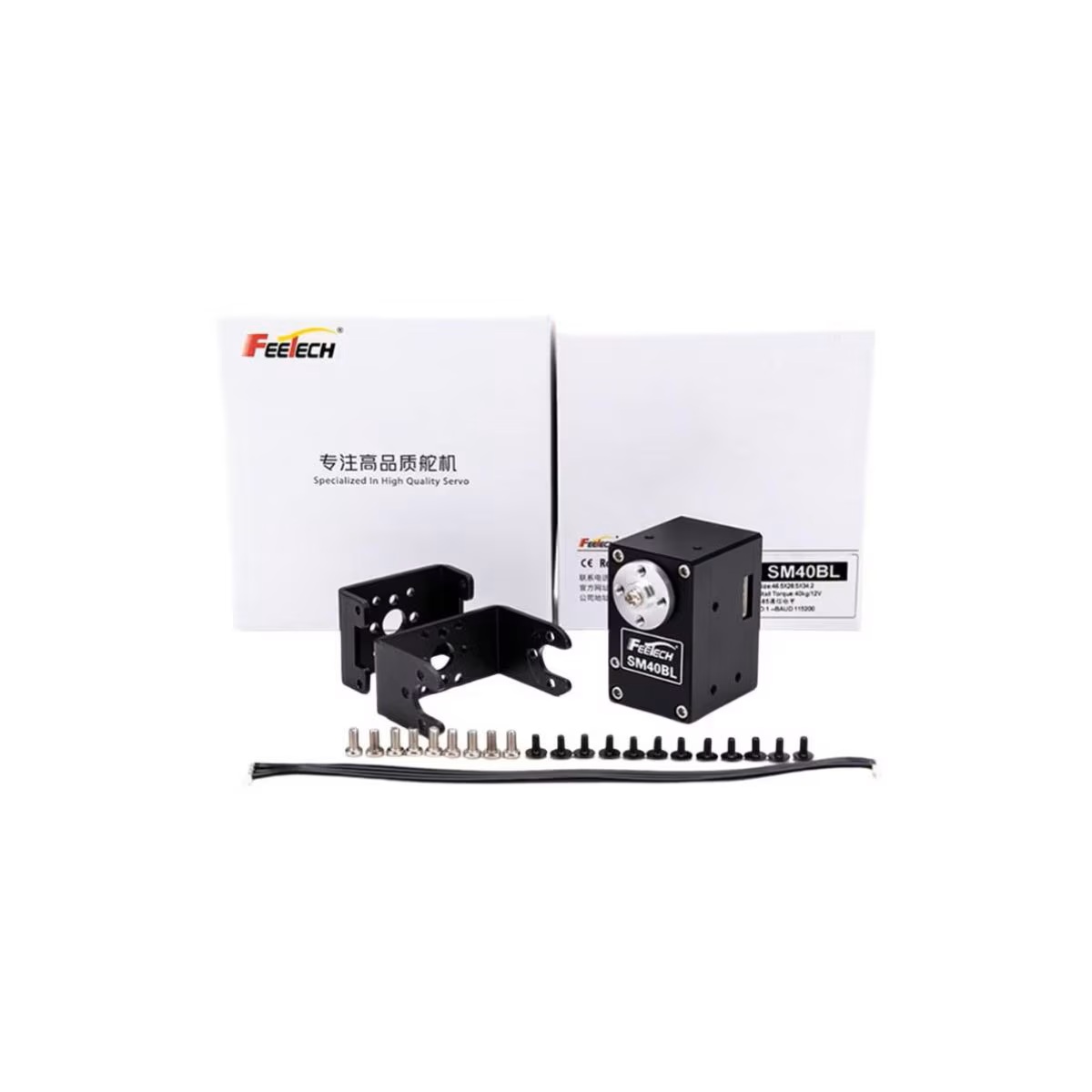

SM40BL 40kg Brushless RS485 Servo
Brushless RS485 servo delivering 40kg torque at 12V. Brushless motor provides longer lifespan and higher efficiency. RS485 communication enables cable runs over 100 meters.
$99.99
Key Specifications
- Manufacturer: FEETECH
- Model: SM40BL
- SKU: SM-40BL-C001
- Stall Torque: 40kg @ 12V
- Dimensions: 46.5mm × 28.5mm × 34.2mm
- Operating Voltage: 12V
- Communication: RS485 Serial Bus
- Motor Type: Brushless DC
- Baud Rate: 115200 (default)
- Default ID: 1
- Encoder: Magnetic with feedback
- Modes: Position, Speed, Torque control
- Feedback: Position, Speed, Load, Voltage, Temperature
- Protection: Overload, Overcurrent, Overvoltage, Overheat
Applications
- AGV/autonomous vehicles
- Industrial automation
- High-duty-cycle robotics
- Large-scale installations
Additional information
| Weight | 7.9 lbs |
|---|
