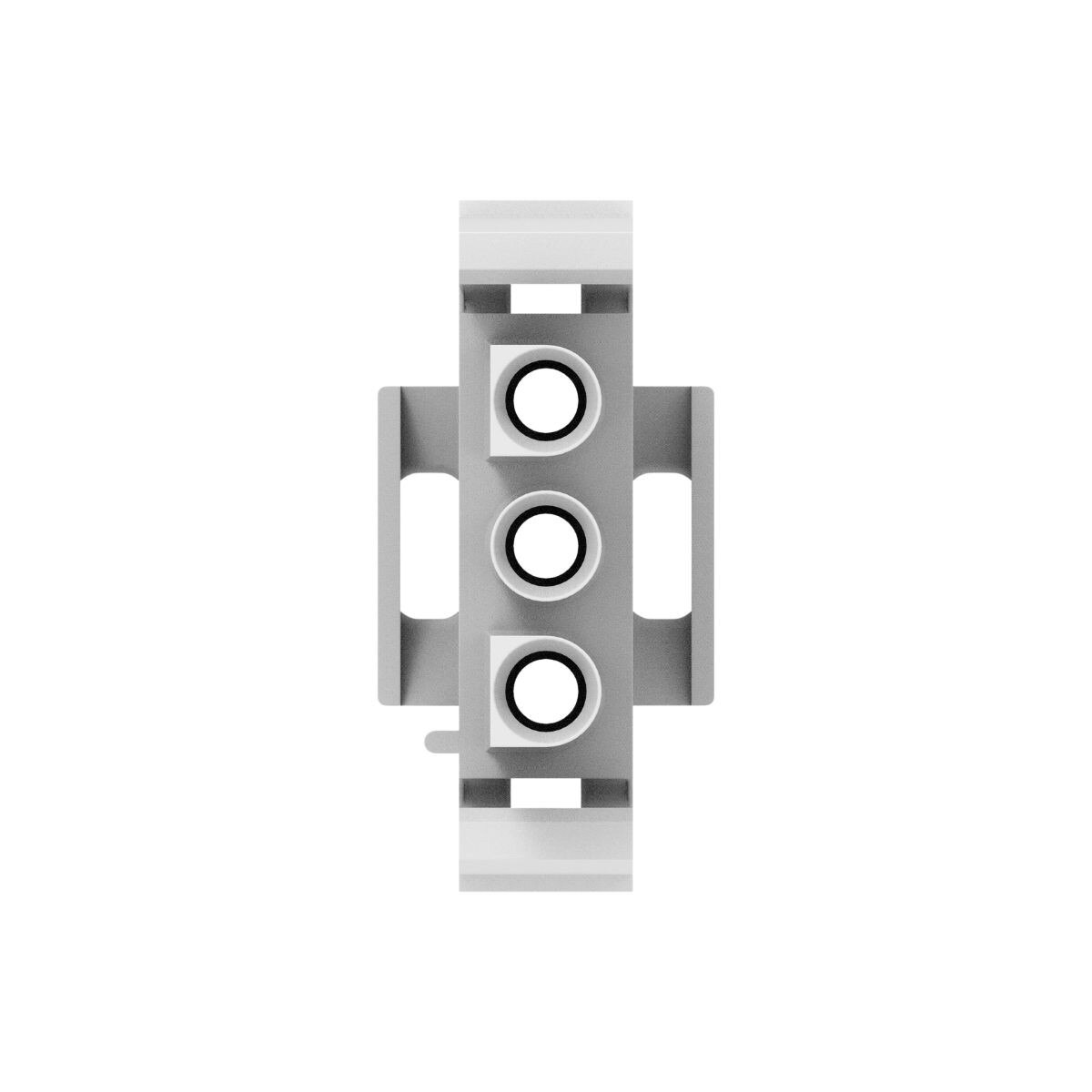

TE Connectivity 1-480700-0 – 3-Position MATE-N-LOK Plug Housing
The TE Connectivity 1-480700-0 is a 3-position Universal MATE-N-LOK plug housing designed for wire-to-board or wire-to-wire connections. It features crimp termination and a free-hanging (in-line) mount design. Constructed from UL 94V-2 rated nylon for durability and electrical insulation. Suitable for applications up to 600V AC.
$0.17
Key Specifications
- Manufacturer: TE Connectivity
- Part Number: 1-480700-0
- Series: Universal MATE-N-LOK
- Product Type: Connector Housing – Plug
- Number of Positions: 3
- Mounting Type: Free-Hanging (In-Line)
- Termination Method: Crimp
- Material: Nylon (Polyamide PA)
- Color: Natural
- Operating Voltage: 600V AC
- Operating Temperature: -55°C to +105°C
- Flammability Rating: UL 94V-2
- Application: Wire-to-Board / Wire-to-Wire
Additional information
| Weight | 0.0053 lbs |
|---|
