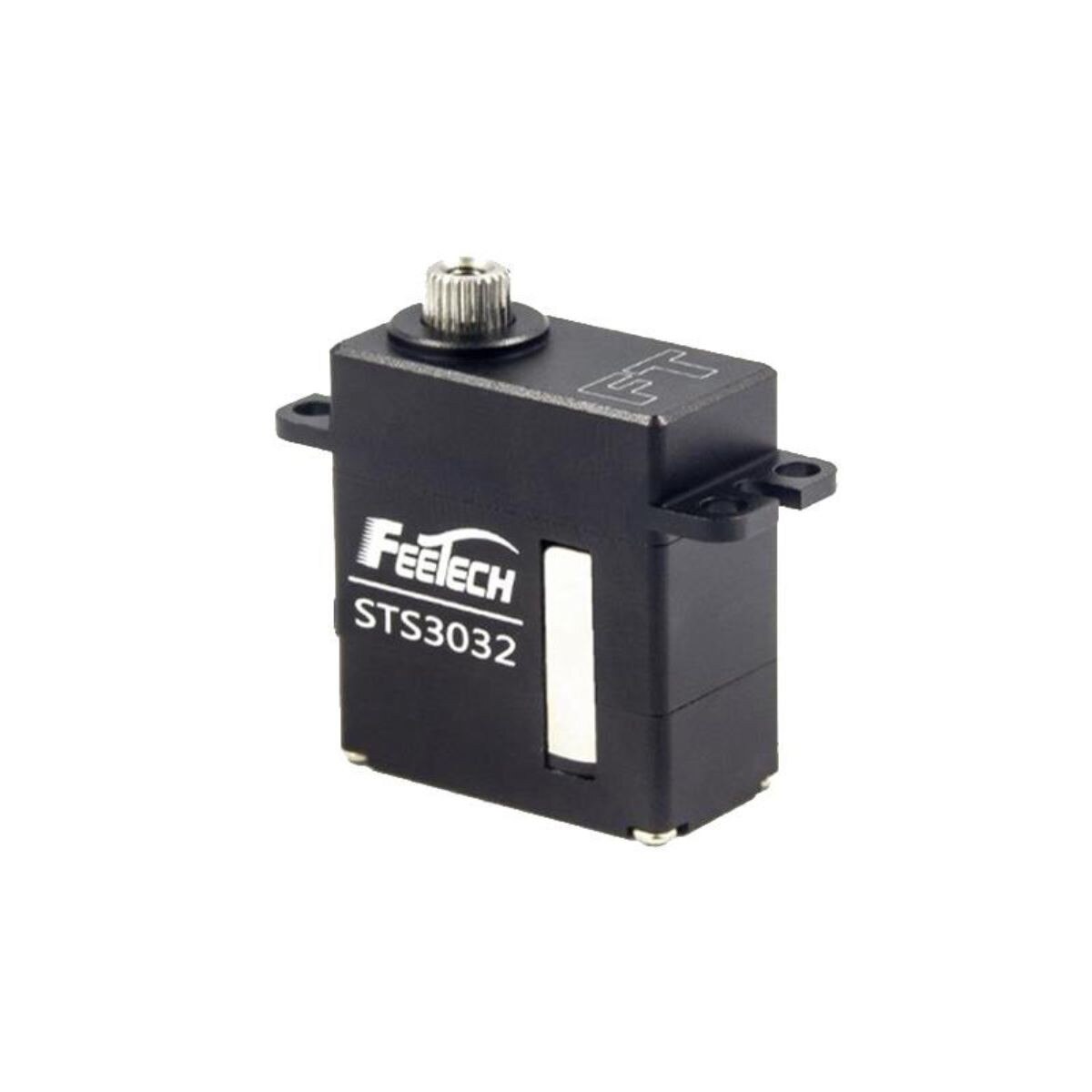

STS3032 4.5kg Compact Smart Servo
Ultra-compact TTL serial bus servo in 23mm × 12mm × 27.5mm package. Features all-metal gears and 12-bit magnetic encoder despite tiny size. Daisy-chain capable.
$32.99
Key Specifications
- Manufacturer: FEETECH
- Model: STS3032
- SKU: ST-3032-C001
- Stall Torque: 3.5kg.cm @ 4.8V | 4.5kg.cm @ 6.0V
- Speed: 0.11sec/60° @ 4.8V | 0.09sec/60° @ 6.0V
- Dimensions: 23mm × 12mm × 27.5mm
- Weight: ~25g
- Voltage Range: 4.8V - 6.0V
- Communication: TTL Serial Bus (Digital Packet)
- Encoder: 12-bit Magnetic
- Shaft: Single-shaft
- Gear Type: All-Metal
- ID Range: 1-253
- Baud Rate: 115200 (default)
- Feedback: Position, Speed, Load, Voltage
Applications
- Compact animatronics
- Wearable robotics
- Space-constrained builds
- Small hexapod/quadruped legs
Additional information
| Weight | 1.3 lbs |
|---|
