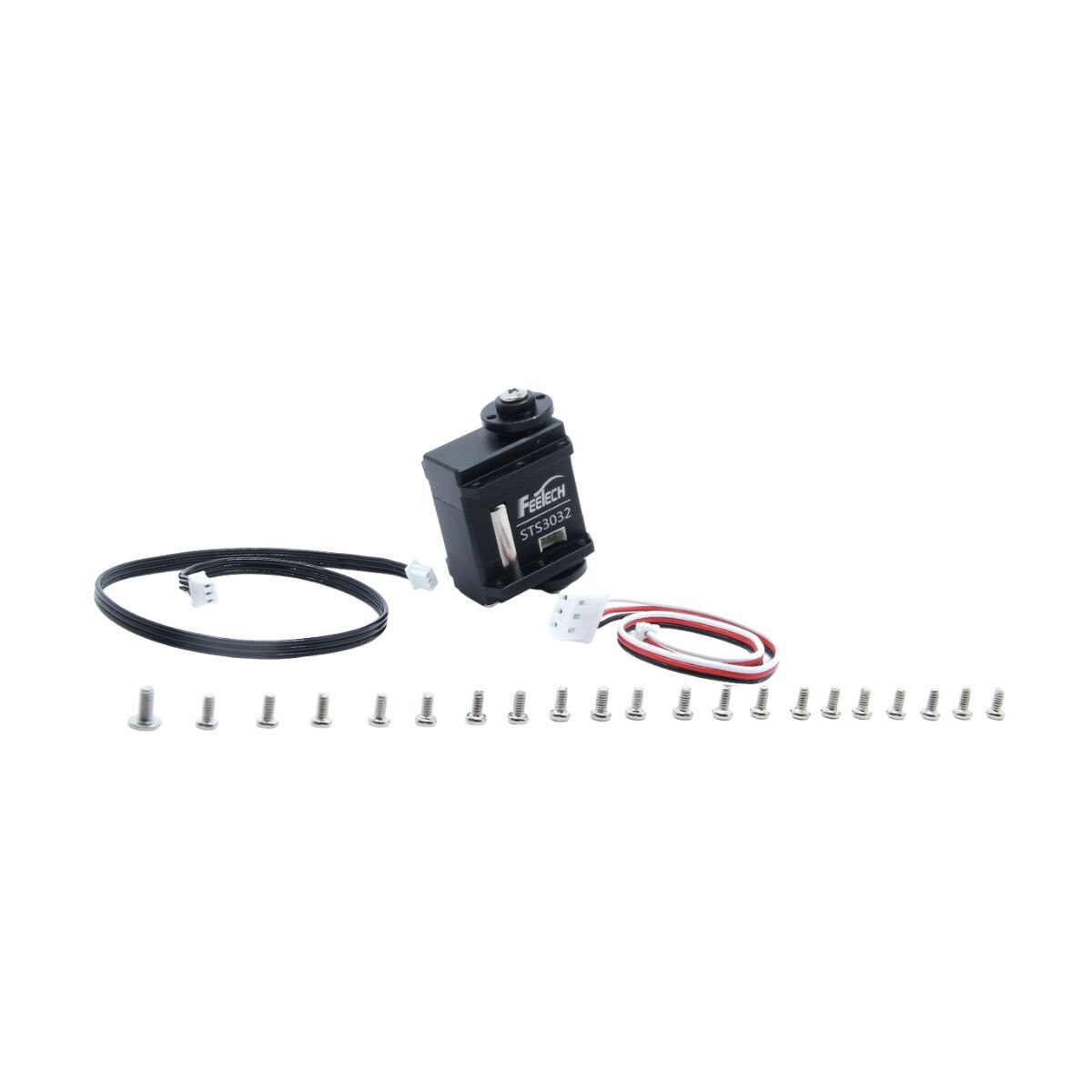

STS3032 4.5kg Double Shaft Compact Servo
Double-shaft variant of the compact STS3032. Same 23mm × 12mm × 27.5mm size with dual output shafts for mounting mechanisms on both sides.
$34.99
Key Specifications
- Manufacturer: FEETECH
- Model: STS3032
- SKU: ST-3032-C036
- Stall Torque: 3.5kg.cm @ 4.8V | 4.5kg.cm @ 6.0V
- Speed: 0.11sec/60° @ 4.8V | 0.09sec/60° @ 6.0V
- Dimensions: 23mm × 12mm × 27.5mm
- Weight: ~25g
- Voltage Range: 4.8V - 6.0V
- Communication: TTL Serial Bus (Digital Packet)
- Encoder: 12-bit Magnetic
- Shaft: Double-shaft (dual output)
- Gear Type: Metal
- ID Range: 1-253
- Baud Rate: 115200 (default)
- Feedback: Position, Speed, Load, Voltage
Applications
- Symmetrical mechanism designs
- Dual-linkage animatronics
- Pan-tilt systems
Additional information
| Weight | 1.2 lbs |
|---|
